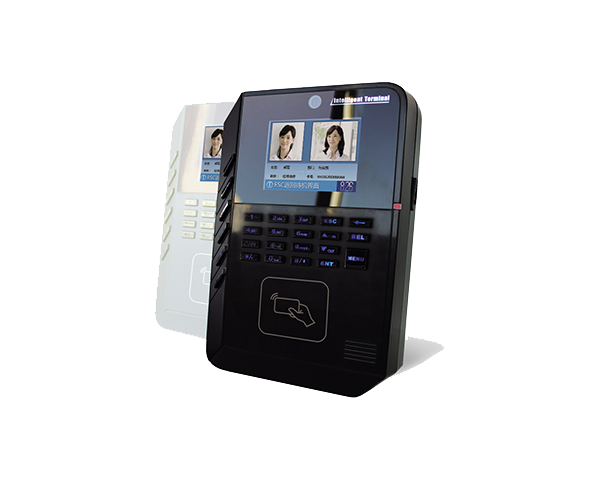

WEDS-I6（WIF/3G optional）
Professional appearance design with excellent workmanship and easy installation
Particular photograph function for attendance with HD color camera in 1.3mega pixel to avoid substitute punching
- IC/NFC/CPU
- IC/CPU
- ID CARD
- Fingerprint
Flexible System Infinitely Extension
- Professional appearance design with excellent workmanship and easy installation.
- Color LCD, TFT HD screen in 3.5 inch, available to show characteristic picture and color photos.
- Particular photograph function for attendance with HD color camera in 1.3mega pixel to avoid substitute punching.
- Various identification mode for option: RF card, password and camera photograph.
- Offline function available for distance: USB disk to upload/download staff files.
- Internal TCP/IP protocol and 100M hi-speed to implement data transfer among network.
- Real time transfer on reliable attendance data based on steady network platform.
- Multiple language option available: Chinese simplified, Chinese traditional, English etc.
- Speaking attendance machine: voice prompt available for every function and staff ID can be read out.
- Auxiliary functions: meeting notice, birthday reminding, time striking, timing turn on/off, advertising play.
- Enabled by advanced Linux embedded operation system and ARM9 hardware platform, the machine can work around the clock with steady and reliable performance.
- Access control: relay output to open the door.
- Wiegand interface available to connect an external wiegand 26 card reader.
- Particular six attendance mode: 16 function keys and 6 attendance mode keys to distinguish work, off work, out, back, overwork, off overwork.
- Fast recognition with the most advanced fingerprint sense technology algorithm, 0.000001 at error rate.
Technical Parameter
| Item | Parameter |
| Standard Power | DC 12V/2A |
| Battery(Optional) | 1100mAh/7.4V |
| Rated Power | 6W |
| Appearance Size | 205* 150* 41(mm) |
| Weight | 480g |
| Identification Mode | IC、ID card, 2.4G RF-UIM/RF-SIM etc |
| Identification Speed | Card Identification < 0.2 second |
| Identification Distance | IC/ID card identification distance: 2.5-10(cm),2.4G RF-UIM/RF-SIM card identification distance > 3cm |
| Time Attendance Speed | 60 persons /minute(fastest speed) |
| Photography | 1.30 mega pixels, HD color camera |
| Storage Capacity | 256MB, 16G SD card and 16G USB flash |
| Display | 3.5 inches color TFT LCD resolution 320×240 |
| Network Interface | 100/10Base-T Ethernet interface, RS485 |
| WIFI/3G Module | Optional |
| Data Transmission Protocol | TCP/IP |
| USB Interface | USB2.0 interface, support WIFI, 3G |
| Wiegand Card Reader | Support external Wiegand 26, WEDS card reader with WEDS internal wiegand protocol |
| Access Control | Built-in two-door access control |
| Working Environment | Temperature -5-45deg humidity 10%-90% |
| Sound Effect | Voice reminder |
| Capacity Volume | 100, 000 people |
| Data Protection Time after Time Down | > 10 years |
| Records Amount（with photos） | <= 20,000 |
| Records Amoun（t without photos） | <= 100,000 |
