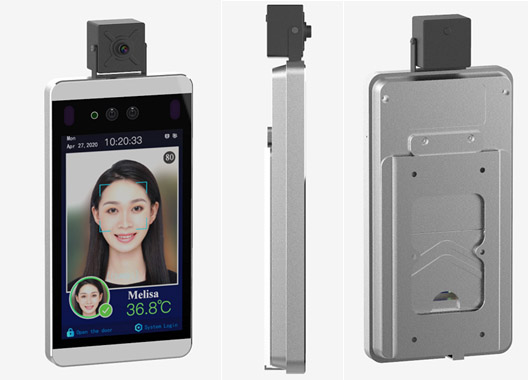

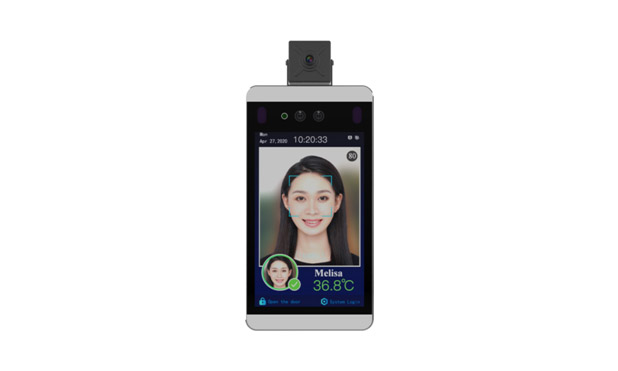

Infrared image, no need black body calibration, intelligent terminal with face recognition and temperature detection!
- 2020-05-23 15:05
Product features
Super kernel: adopt HiSilicon dual-core processor, the system is high speed and stable;
Top algorithm: using the Megvii face algorithm and wide dynamic recognition technology;
Liveness detection: effectively prevent the use of photos or videos to replace recognition;
Temperature detection: infrared imaging temperature detection, parallel to face recognition, can be selectively turned on or off;
Microwave induction sensor: accurate detection, 2.5 meters can wake up, complete the identification preparation;
8 "touch screen: can view information, operation Settings, password, etc.
Waterproof and dustproof: metal case, waterproof and dustproof;
Various communication methods: RS485, WG26/34, network port, etc., support online upgrade;
Convenient interface: can be connected to the electric lock, card reader, network cable, U disk (upgrade, transfer data);
Automatic light complementary light switch: according to the environment changes automatically on or off light compensating light, energy saving and environmental protection;
Access control and attendance integration: cooperate with the background management software to achieve the complete solution.
| Items | Index |
| CPU | HiSilicon dual-core |
| Memory | RAM：1G; ROM: 4GB |
| Screen | Size(inch): 8 inches（MIPI） IPS |
| Resolution: 800*1280 | |
| Lightness: 500 cd/m2 | |
| Camera | 2 million pixels |
| Identification mode | Face, IC card/CPU card |
| Identification speed | Card identification＜0.1s, face identification＜1s |
| Identification technology | Binocular liveness detection，visible light+infrared identification |
| Identification distance | Face+temperature50~200cm(suggestion 100cm) |
| Face library | 20000pcs faces |
| Camera complementary light |
4 Infrared+12White light intelligent fill light; Object induction: microwave sensor; Light sense: light sensitive sensor |
| Body temperature | Infrared imaging temperature monitoring |
| FOV(calculated value) | 59°× 44° |
| Resolution | 16×4 |
|
Temperature measurement accuracy (room temperature) |
± 0.5℃ |
| Voice broadcast | Support |
| communication mode | Ethernet 10M/100M, WIFI optional |
| Data transfer protocol | UDP, TCP/IP |
| Port | 1 way wiegand input or output;1 way relay;1 way magnetic signal;1 way door button;1 USB;1 RS485;1 power supply |
| Waterproofing grade | IP54 |
| Temperature | -20℃~+60℃ |
| Humility | 10%-90% |
| Power supply | DC12V 2A |
| Case material | Aluminium alloy (CNC) |
| Dimension |
243*127*32mm(dimension not include post, not include external camera), Wall mounted/post mounted |
